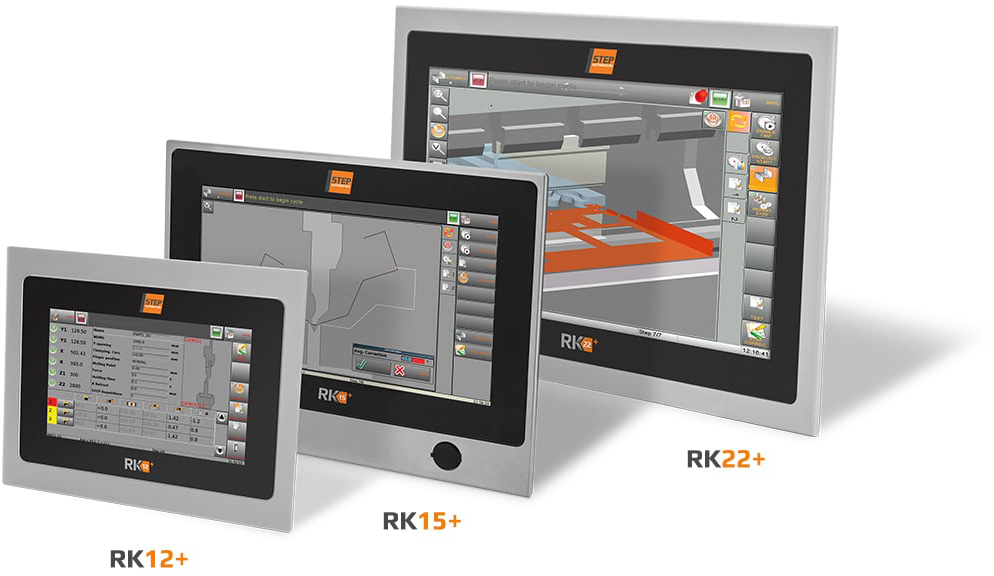

Touch Panel seriesRK touch series CNC offers a versatile range of solutions to meet all the demands of bending. The winning ROCK design is proposed in a slim and prestigious construction.
The RK series has been specialized for different applications.
EASYCUT SW: software for shears for RK12 CONVENTIONAL PRESS: bending software for conventional presses (torsion bars, RG) for RK12 and RK15
FOLDING SW: application for folding machines for RK15 and RK22
The RK series can be supplied with Windows operating system to be equipped by the specific customer application.
| Supply | 24Vdc |
|---|---|
| Cpu card | ITX module, low power consumption, Quad Core Intel 2.3GHz RAM DDR3 4Gb |
| Monitor | Colours LCD TFT, Capacitive Touch-screen |
| Hard Disk | eMMC 32Gb or M.2 SSD 128 GByte |
| USB | 4 ports 3.0 |
| Net Card | 2 Gigabit Ethernet RJ-45. |
| Model | Software | Axis number |
|---|---|---|
| RK12 | Easy | 4 |
| RK12+ | 3D Profile | 6 |
| RK15 | 3d Profile | 8 |
| RK15+ | Standard 3D | 8 |
| RK22 | Standard 3D | 12 |
| RK22+ | Advanced 3D | 12 |
| Easy | Simple table programming |
| 3D Profile | 2D profiles editor with 3D simulator |
| Standard 3D | 3D editor and simulation, DXF parts import |
| Advanced 3D | Add to Standard 3D the IGES/STEP parts import |
| RK12+ | RK15+ | RK22+ | |
| Dimensioni LxAxP (mm) | 320 x 260 x 60 | 445 x 340 x 45 | 610 x 410 x 45 |
| Weight (Kg) | 3 | 4.5 | 7.5 |
Motion is the modular units that STEP designed to interface and control all types of Press brakes: hydraulics, electrical and hybrids. It’s equipped with a PLC logic with a lot of inputs/outputs. The numerical control, connected through Can Bus or USB interface to one or more Motion modules, is able to completely manage the machine.
eMotion is the new modular units that STEP designed like evolution of the traditional Motion line, to interface and control all types of Press brakes: hydraulics, electrical and hybrids.
It extends the traditional functions with the addition of the support of the EtherCAT protocol for the interface to the drives, of the interface to the absolute linear scales and provides for an Ethernet communication with the CNC.
STEP has designed a new system of bending assisted by a multicolor LED bar. The system, named LED Bend Guiding System, is used to describe a lot of conditions, that helps the operator to interact quickly with the machine. Productivity and aesthetics are combined in an efficient manner.
STEP Automation offer offline CAD/CAM for all applications developed.
All software, in addition to allowing a quick definition and simulation of part programs, are equipped with functionality for Industry 4.0 interconnection.
